The frame using Beam steel, and Shot blasted process after welding.
Shaft of the cantilever type extension cope: Φ465-Φ515, controlled by the valve hydraulic system, and the mechanical parts.
Separately working, through reducer by Chain driving the shaft to decoiling or recoiling the coil material. When working assort with the forming machine, the decoiler uncoiling the coil actively, control the uncoiling speed by ultrasonic sensor.
Using separately hydraulic system to supporting the working of the decoiler.
Set separately electric control system, realized the extension the center shaft of Uncoiler, and driving the shaft forward, backward, and step motion forward and backward.

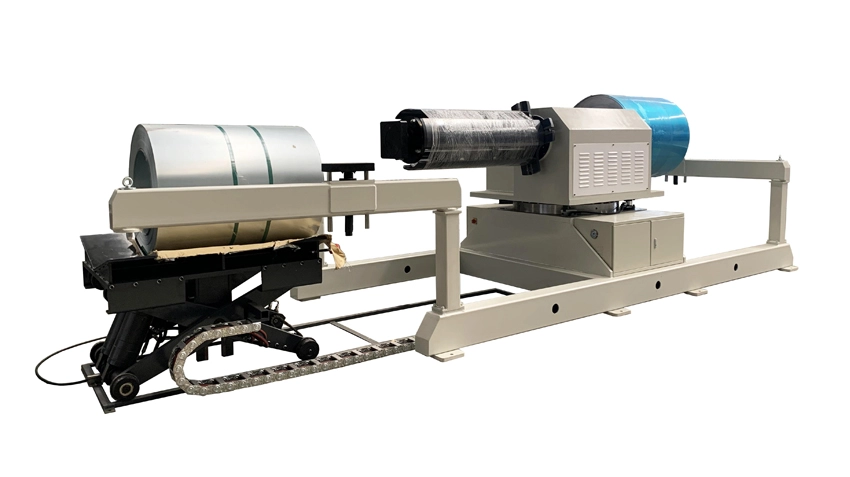

The coil car is used for lifting the coil to the decoiler.
No | Item | Parameter | Remark |
1 | Capacity | 8T | |
2 | ID of Coil | φ508mm | |
3 | OD of Coil | φ1250mm | |
4 | Min OD of Coil | Φ750mm | Related to coil car |
5 | Width of the Coil | 1000mm-1250 mm | |
6 | Speed of Decoiling | ≤35m/min | |
7 | Power of Hydraulic Station | 5.5kw | |
8 | Power of the Motor | 3kw | According to actual design |
9 | The Hydraulic Pressure | 15Mpa | |
10 | Power Source | 380V/50HZ/3PH | |
11 | Total Power | About 8.5kw |
