Shelf Rack Roll Forming Machine Manufacturer in China

Shelf Rack Roll Forming Machine

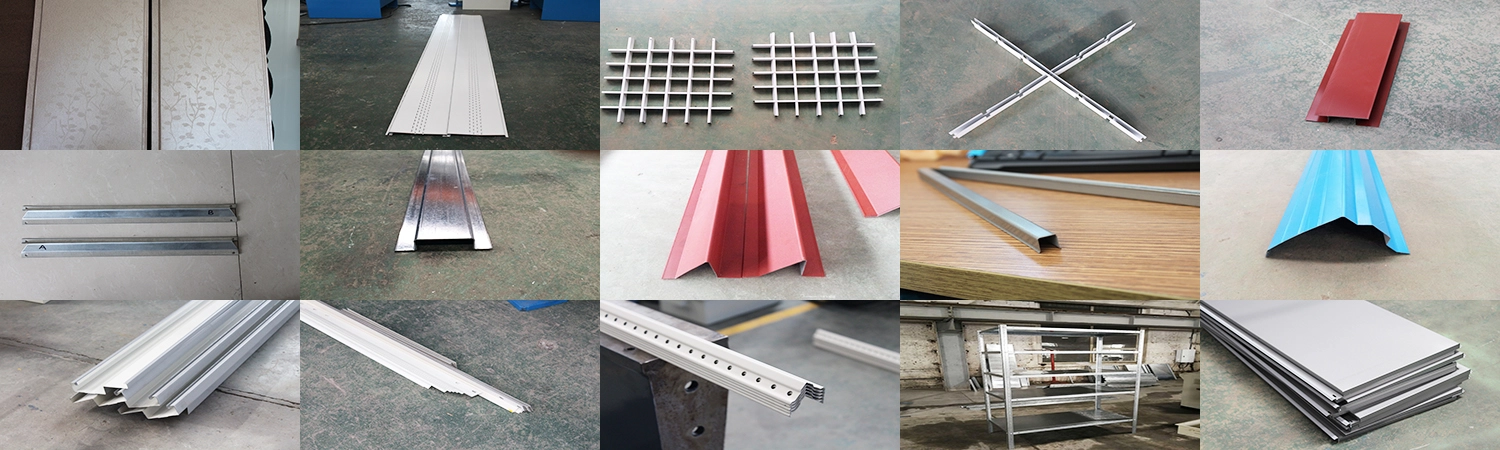

A shelf rack roll forming machine is specialized equipment used to manufacture metal shelf components for warehouses, retail stores and industrial storage systems. Smartech’s shelf storage rack roll forming machine solution consists of several coordinated production lines, including a shelf post roll forming line, a shelf layer board forming line and a shelf mounting plate production line. By combining these shelf-making roll formers, manufacturers can produce the main components required for a complete shelf system, while profile sizes can be adjusted directly on the machines to meet different shelf designs and production requirements. As one of the experienced roll forming machine manufacturers in china, Smartech customizes each storage rack roll forming machine according to the customer’s profile drawing, material thickness, hole pattern, finished length and required production capacity.

Use of Storage Rack Roll Forming Machine

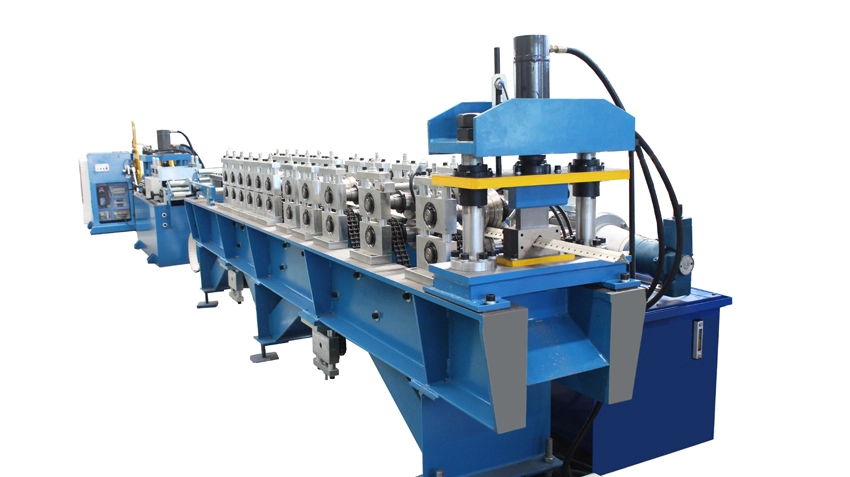

The shelf rack production line integrates decoiling, feeding, punching or notching, roll forming and hydraulic cutting in one continuous process. The material is gradually formed into shelf panels, posts or mounting plates, while product length and quantity are controlled through the PLC touch screen and encoder. Up to 20 production batches can be preset for continuous operation. Optional equipment, including a pre-cutter, protective film device and automatic receiving table, can be added as required. When evaluating a storage rack roll forming machine for sale, buyers should confirm the profile design, punching layout, material properties and required automation level.

Features of Shelf Storage Rack Roll Forming Machine

Because shelf profiles, hole layouts and material requirements vary between projects, storage rack roll forming machine manufacturers need to match the tooling and line configuration to the customer’s finished product drawing rather than provide a single fixed machine design.

Integrated Punching and Forming: The production line can combine decoiling, feeding, punching or notching, roll forming and hydraulic cutting within one continuous process.
PLC Batch Production: Operators can enter product length and quantity through the touch screen and preset multiple production batches for continuous manufacturing.
Profile-Based Tooling Design: Forming rollers and punching tools are designed according to the required shelf profile, hole pattern, material thickness and finished dimensions.
Adjustable Profile Sizes: The production line can be configured to accommodate different shelf sizes according to the profile design and required adjustment method.
Optional Line Equipment: Pre-cutting, protective film application and receiving systems can be selected according to the finished product and automation requirements.

When comparing storage rack roll forming machine suppliers, buyers should evaluate the supplier’s tooling design, punching configuration, electrical standards, testing process and technical support rather than comparing forming speed alone.

Specification of Shelf Rack Roll Forming Machine

No	Item		Parameter	Remark
1	Suitable Material	Type	PPGI


		Width(mm)	410/510/610/710mm	customize
		Thickness(mm)	0.5-0.8	customize
		Yield Strength(Mpa)	230-300	customize
2	Forming Speed(m/min)		20
3	Roller Material		No.45 Steel with Chromeplate	Up to buyer
4	Roller Shaft Diameter		70	customize

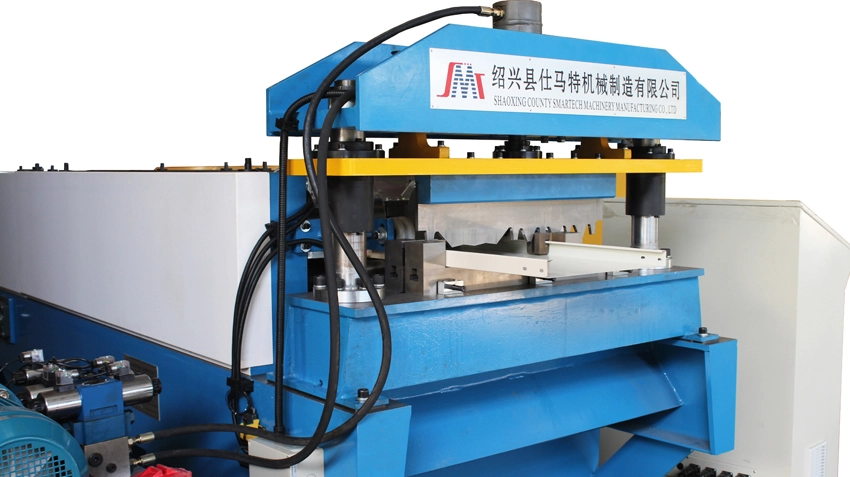

5	Cutting Model		Hydraulic Cutting
6	Power source	Type	380V/3PH/50HZ	Up to buyer
6	Power source	Total Power	According to actual design
